Engine Simulator Exhaust Input

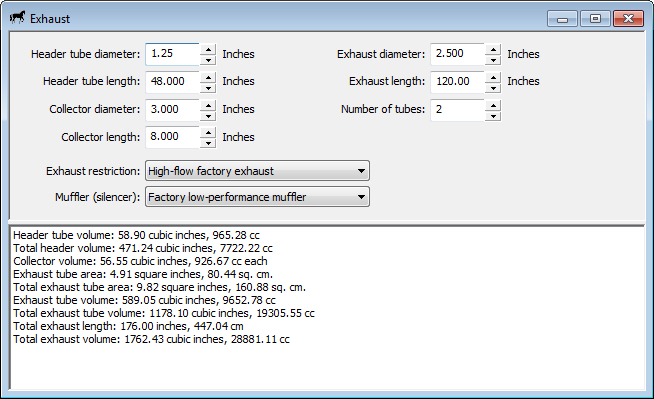

The engine simulator allows you to enter exhaust system specifications for your engine.

• Exhaust header tube diameter and length
• Collector diameter and length
• Exhaust system diameter, length, and restriction
• Muffler restriction

All measurements can be entered in either inches or millimeters.

In addition to using the inputs in the engine simulation, the following items are also calculated:

• Header tube and total header volume
• Collector volume
• Exhaust area and volume
• Total exhaust length

After you fill out the Exhaust window, you then continue to the Aspiration and Valves windows to continue specifying your engine setup.
